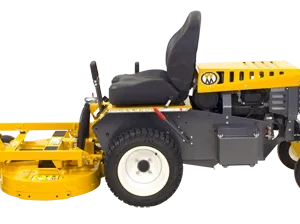

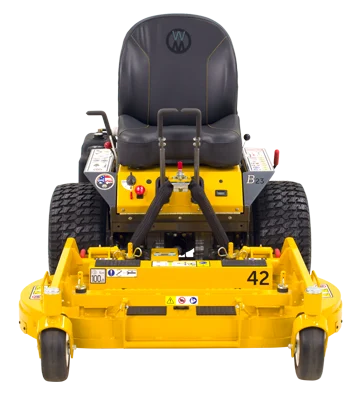

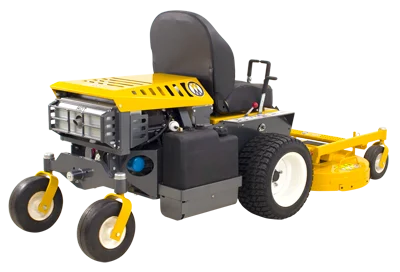

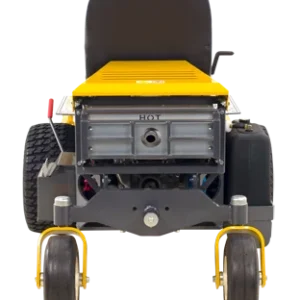

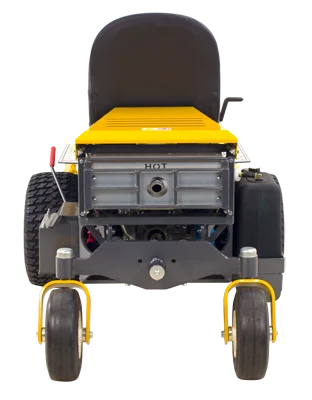

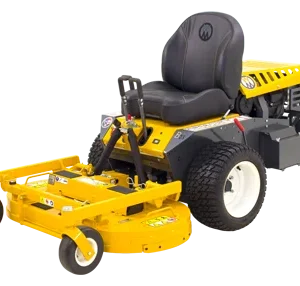

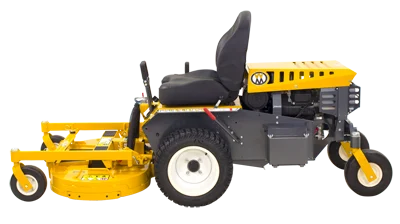

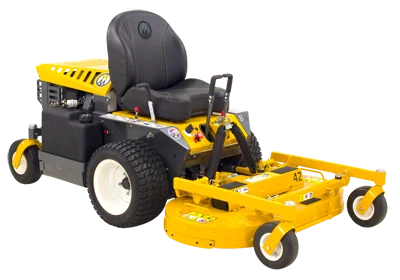

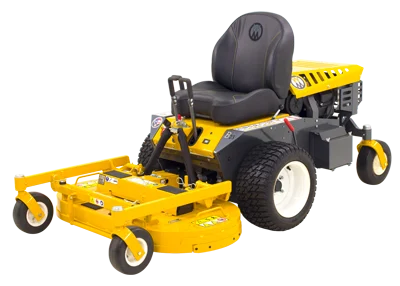

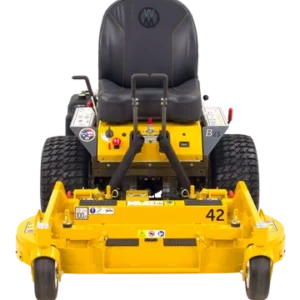

Walker MB23 Commercial Zero-Turn Mulching Mower

Description

The code MB2317222 appears to correspond to the Walker MB23 configuration. Walker identifies the MB23 as a commercial, non-collection mower with a 22.5 HP Kohler CH680 engine, designed for compact, high-production mowing and hillside stability.

Key Specifications

• Brand: Walker

• Model: MB23

• Type: Commercial Zero-Turn / Mulching Mower

• Engine: Kohler CH680

• Engine Displacement: 674 cc

• Engine Power: 22.5 HP @ 3,600 RPM

• Fuel Type: Gasoline

• Fuel Capacity: 4.7 gal / 17.8 L

• Transmission: Dual Hydro-Gear ZT3100 integrated transaxles

• Forward Speed: 0–8 MPH

• Cutting Deck Compatibility: 36–74 in. side discharge; 36–52 in. mulching

• Drive System: Independent hydrostatic

• Steering: Individual hand-lever controls

• Tractor-Only Weight: Approximately 610 lb / 277 kg

• Weight With Deck: Varies by deck configuration

Features

• Compact chassis designed for maneuverability and hillside stability

• Kohler CH680 commercial engine

• High-capacity 4.7-gallon fuel tank

• Dual Hydro-Gear ZT3100 transaxles

• Quick-disconnect PTO shaft for easy deck changes

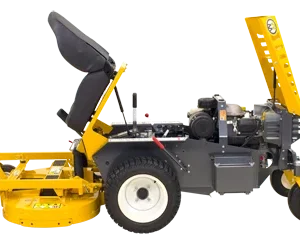

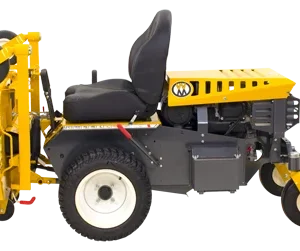

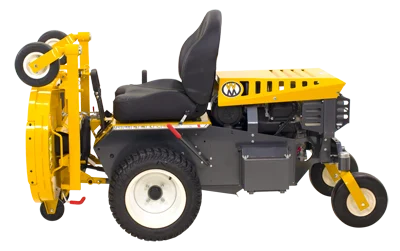

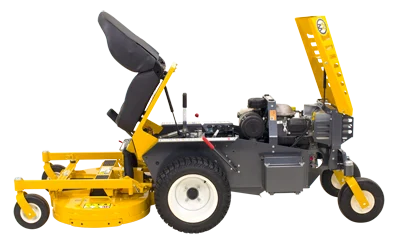

• Tilt-up deck and body for convenient maintenance

• Compatible with multiple side-discharge and mulching decks

• Designed for commercial and rural property applications
